Products > 1000 Gallon Single Axle

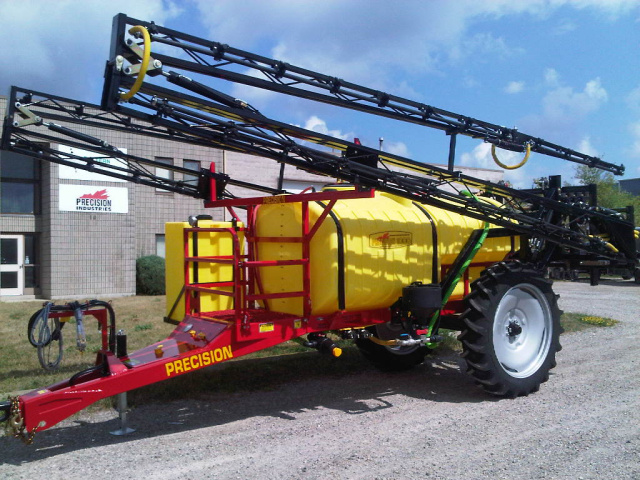

1000 Gallon Single Axle

Price: $37,000.00
Availability: in stock
Prod. Code: 675

Check our product literature page to download more information on this product

This same frame will handle 1000, 1250 or 1500 gallon tanks

Unit as priced has:

 90' Ser III boom 20" spacing on 1" poly pipe. Plumbed in 3 sections.

12.4x38 8 Ply armor Bias tires

5 section electric over hydraulic control, seperate wing tilt, open and fold together, centre lift.

80 Gallon tank rinse system

Chemical Eductor, aprox. 1 gal. per second of suction

Safety Chains 3/8" grade 70

7000 lb. tongue jack

16" hindged and locking lid on main tank

30" boom lift

PTO driven Hypro Centrifugal  pump (111 GPM @ 50PSI, 540 RPM)

Injection Foam Marker (1 gallon Foam tank & sucks from rinse tank)

Micro Trak  MT3405-FII with GPS speed sensor and Valve manifold

8 bolt 12000 lb hubs (24000 lb. axle)

Rugged Structural tube axle is adjustable in width from 60" to 80". Widths of 90" to 120" available on factory order.




Standard tire size is 12.4Lx38 10 ply




Rugged undercarriage design to allow tongue to be directly coupled to axle for maximum strength.




Adjustable cast hitch




Deluxe work platform including handrail, convenience step and tool box.




Uses standard North American size fittings and components from Banjo, Teejet and Hypro.







Available with the industry leading Ser. III super structure self levelling boom from 45' to 100'. Field proven on hundreds of self propelled and pull type sprayers across North America.
